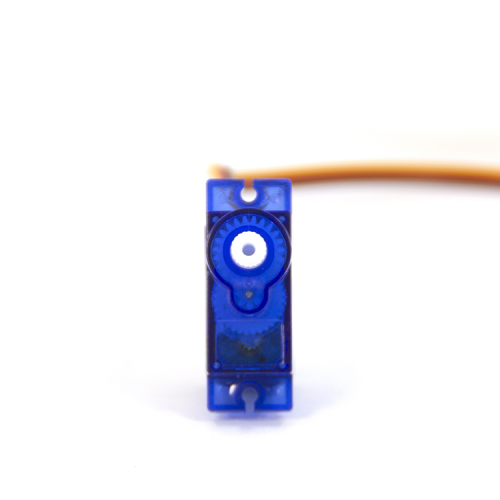

FeeTech Low Voltage Drive Digital Servo (FT90B)
FeeTech Low Voltage Drive Digital Servo (FT90B)
-74x74.png "FeeTech Low Voltage Drive Digital Servo (FT90B)")
-74x74.png "FeeTech Low Voltage Drive Digital Servo (FT90B)")
-74x74.png "FeeTech Low Voltage Drive Digital Servo (FT90B)")
-500x500.png "FeeTech Low Voltage Drive Digital Servo (FT90B)")
-500x500.png "FeeTech Low Voltage Drive Digital Servo (FT90B)")
-500x500.png "FeeTech Low Voltage Drive Digital Servo (FT90B)")
$6.99CAD
The FeeTech Low Voltage Drive Digital Servo FT90B comes without ball bearings. It provides an operating voltage range between 3-6V and rated torque is 0.5 kg.cm at 6V.
Features:
- Model: FT90B
- Storage Temperature Range: -30 ~ 80 °C
- Operating Temperature Range: -20 ~ 70 °C
- Gear Type: Plastic Gear
- Limit Angle: 180 degree
- Bearing: NO Ball bearings
- Horn Gear Spline: 21T (4.86)
- Horn Type: Plastic, POM
- Case: PC
- Motor: Metal brush motor
- Operating Voltage Range: 3 - 6 V
- Idle Current (at stopped): 4 - 6 mA
- No-load Speed: 110 RPM at 6 V
- Running Current (at no load): 120 mA at 6 V
- Peak Stall Torque: 1.5 kg.cm at 6 V
- Rated Torque: 0.5 kg.cm at 6 V
- Stall Current: 800 mA at 6 V
- Running Degree: 180° (when 500～2500 μsec)
- Weight: 10.5g
- Datasheet
