Pololu Ball Caster with 3/8″ Metal Ball

Product Code: 0327
Manufacturer Part Number: 951
Manufacturer: Pololu
Availability: In Stock
$3.79CAD
     0 reviews  |  Write a review

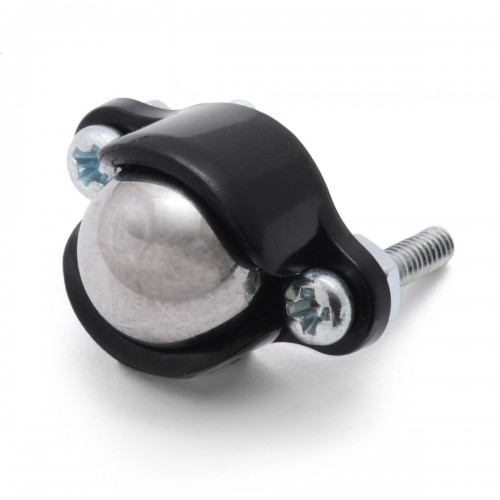

This small ball caster uses a 3/8″ diameter metal ball. The height of the assembled kit ranges from 0.4″ to 0.6″, depending on the combination of included spacers used.

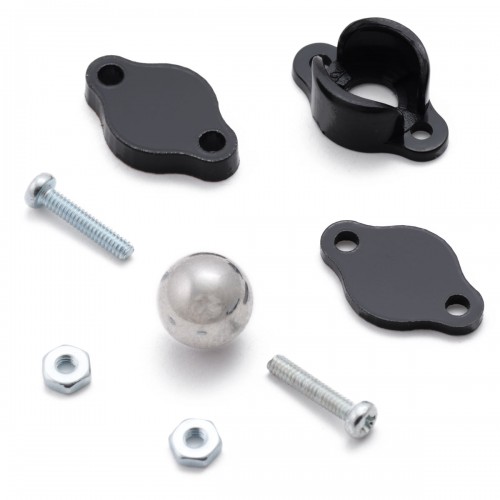

This ball caster kit includes a black ABS housing, a 3/8″ diameter metal ball, two spacers (1/16″ and 1/8″ thick), and two 7/16″ #2 screws and nuts. The total height of the ball caster, 0.4″, can be increased to about 0.6″ using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis, or you can use your own #2 or M2 screws if your application requires a different length.

Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will generally keep it from rolling well.

For detailed dimensions, see the dimension diagram.

Dimensions:

Ball diameter: 0.375 in
Weight: 4 g1

General specifications:

Ball material: metal

Notes:

1. Without screws or spacers
